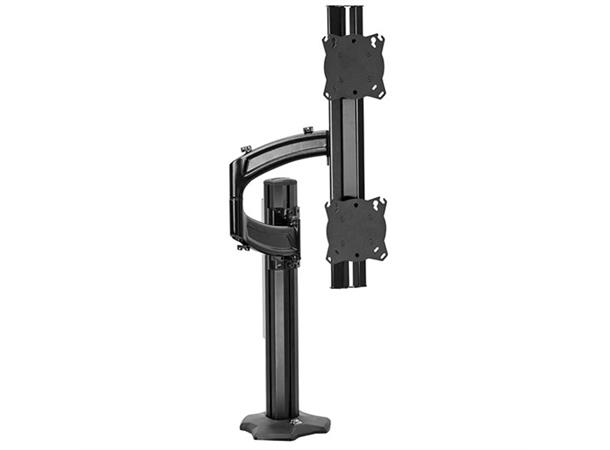

KONTOUR™ K4 1x2 Vertical Grommet Mounted Array
Chief's K4-series was awarded the 2013 rAVe Best of InfoComm award for Best New AV Mount!
Flexibility meets form and function with the Kontour™ K4 series of elegantly designed, Focal Depth Adjustable monitor array mounts from Chief.
Provides an aesthetic & easily adjustable solution for monitor array stations where multiple users will want to re-position the bank of screens to their preferred viewing distance; such as trading desks, call centers, security desks, IT, health care, control rooms and more.
•Articulating Focal Depth Adjust
•Great for multi-user settings where fast & easy adjustment is critical!
•Supports up to 24" monitors
•Swivel and Pan adjustment capability
•Heads feature Centris™ Vertical Tilt of +/- 10°
•Wall or Desk Grommet mounting styles
•Tool-free, integrated cable management
•Streamlined, modern aesthetic
Desktop Thickness Range: Up to 4.94" (125.5 mm)
Extension: 16.2" (411.5 mm)
Minimum Depth: 8.09" (205.5 mm)
Mounting Method: Grommet Hole
Mounting Pattern Compatibility (Universal Versions): VESA 75mm x 75mm & 100mm x 100mm
Notes: Screen Center-to-Center Distance Range of 12" to 16" (304.8 mm to 406.4 mm)
Number of Monitors: 2
Pole Length: 19.28" (489.6 mm)
Screen Array Configuration: 1 x 2
Shipping Weight: 11 kg
Tilt: +/- 10° vertical tilt
TV Width Range: Up to 23.0" (584 mm) max display width
Typical Screen Sizes: 19" to 24" diagonal
Weight Capacity: 15 lbs. per monitor
