LD Systems DAVE 8 XS W
Compact active PA system
Satelittene leveres med Hvite fronter/griller.
Se tilbehør for passende Speakon kabler

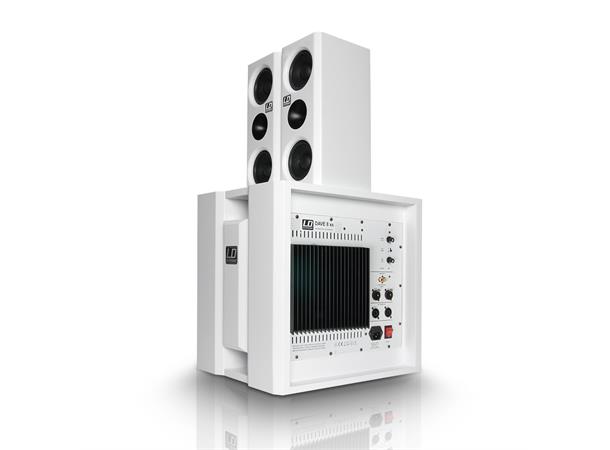

The new LD Systems DAVE 8XS is a portable 2.1 multimedia system with a high-performance 8" band pass subwoofer (150 W RMS) and two satellites (each 4" + 1", 100 W, with silk dome).
The system provides crystal-clear sound and was specifically designed for multimedia applications such as home recording or video processing; it is also suitable as a monitor for DJs or keyboardists or as a music system for smaller venues such as
bars and cafés. The high-performance A/B amplifier built into the subwoofer provides for both the subwoofer and the satellites. The multimedia system LD DAVE 8XS has line inputs in XLR and RCA format and is equipped with all standard protections.
The built-in limiter keeps the system safe from overload and ensures a long service life. On the side of the subwoofer, in addition to an ON/OFF switch and a phase reverse switch (180°), there is a separate subwoofer volume knob that allows you to find the perfect mix of brilliant treble, punchy mids, and powerful bass.
From serial number 130818000001, the satellite speakers are equipped with a 16 mm flange and are therefore compatible with the speaker stands from LDDAVE8SET2.
Product number: LDDAVE8XSW
Product type: PA system
Max. SPL (continuous): 117dB
Frequency response: 45 - 19.000Hz
Dispersion (H x V): 60 x 60
Low/mid driver dimensions: 8"
Low/mid driver dimensions (mm): 203mm
Woofer magnet: Ferrite
Woofer brand: Custom-made
Cabinet construction: Bandpass
Cabinet material: 15 mm MDF
Cabinet / Housing surface: texture paint
Subwoofer width: 352mm
Subwoofer height: 430mm
Depth Subwoofer: 434mm
Midrange size: 2 x 4"
Midrange size: 2 x 101mm
Midrange magnet: Ferrite
Midrange brand: Custom-made
Tweeter dimensions: 1"
Tweeter dimensions (mm): 25,4mm
Tweeter magnet: Ferrite
Tweeter brand: Custom-made
Mid/Hi system impedance: 4Ohm(s)
Loudspeaker inputs: 1
Speaker input connections: Speakon compatible : Closed
Mid/Hi system cabinet material: 12 mm MDF
Mid/Hi system cabinet surface: texture paint
Mid/Hi system width: 144mm
Mid/Hi system height: 350mm
Mid/Hi system depth: 170mm
Mid/Hi system features: 16 mm flange, 2 x M6 mounting points for wall mounting
Amplifier Module (integrated in Subwoofer)
Amplifier: Class A/B (Bi-amp)
Amplifier Output System (RMS): 350W
Amplifier Output Subwoofer (RMS): 150W
Amplifier Output Mid/Hi (RMS): 2 x 100W
Protection circuits: limiter, overload, short circuit
Cooling: Aluminium heat sink
Controls: Subwoofer Volume, volume, mains switch (on/off), Subwoofer Phase Reverse
Operating voltage: transformer, 220 V AC - 240 V AC, 50-60 Hz
Line input connectors: 6.3 mm Jack, RCA, XLR
Speaker output connections: Speakon compatible
