LD Systems DDQ 10
10" active PA Speaker with DSP
The LD Systems DDQ 10 is an extremely high-performance 2-way powered speaker for compact systems, FOH and monitor applications, delay lines, and permanent installations. The groundbreaking design and comprehensive features with components made by leading manufacturers ensure superior performance in its class.
Trouble-free operation of the DDQ 10 is ensured by a specially programmed Sharc DSP with 24-bit/48-kHz converters that have a remarkable dynamic range of 127dB. It incorporates volume control, delay, EQ, crossover, phase, and all protection functions for the drivers and power amps. Heat sinks and a silent fan provide additional protection against overheating. The decisive advantage is attained by a predictive peak limiter with a look-ahead time of 1 millisecond. It guarantees absolute freedom from distortion even at maximum volume.
The DDQ 10 is loaded with a 10” Faital Pro PR300 neodymium woofer and a BMS tweeter. The asymmetrical tweeter horn offers optimal, even sound level distribution from the very first to the very last row of the audience. Its design ensures extraordinarily dynamic, linear reproduction up to 20 kHz. The two drivers are powered separately by two Class D Hypex UCD400 power stage modules with an output of 800W RMS. They have a load-controlled, linear frequency response and extremely low total harmonic distortion with extremely low noise and, thanks to their switching power supply, maximum efficiency. The maximum sound pressure level of the DDQ 10 is 132dB with a dispersion angle of 80° x 60°; the horizontal sound distribution is characterized by extraordinary symmetry.

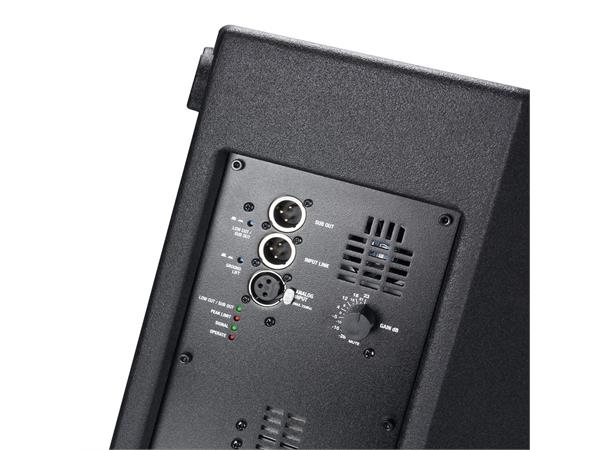

The input, link, and switchable subwoofer output of the DDQ 10 take the form of XLR sockets. A ground lift switch eliminates ground loop hum, and the system functions are indicated by LEDs.
The sturdy bass-reflex enclosure is made of 15mm birch plywood with a structured coating and a front grille made of steel. There is an integral 50° angle for use as a floor monitor and the tweeter horn can be turned accordingly. It has an adjustable tilt stand mount. The innovative Evolutive handles and the low weight facilitate transport. The DDQ 10 active system is made in Germany.
Product number: LDDDQ10
Product type: PA loudspeaker
Design: DSP controlled
Low/mid driver dimensions: 10"
Low/mid driver dimensions (mm): 254mm
Low/mid driver magnet: Neodymium
Low/mid driver brand: Faital Pro
Low/mid driver voice coil: 2.5"
Low/mid driver voice coil: 63.5mm
Tweeter dimensions: 1"
Tweeter dimensions (mm): 25.4mm
Tweeter magnet: ceramic
Tweeter brand: BMS
Tweeter voice coil: 1"
Tweeter voice coil (mm): 25.4mm
Amplifier: 2 x Class D, Hypex Ucd400
Dispersion (H x V): 80 x 60°
RMS: 800 (2 x 400)W
Frequency response: 59 - 20000Hz
Crossover frequency: 1500Hz
Max. SPL (continuous): 119.5 @ 100 - 10.000 HzdB
Max. SPL (peak): 132*dB
Integrated media player: no
Protection circuits: RMS speaker limiter, over voltage, over-current, RMS power supply limiter, DSP-based "look ahead" limiter
Controls: X-Over Sub, mains switch (on/off), ground lift, Gain
Display: X-Over Sub, Operate, Peak Limit, signal
Line inputs: 1
Line input connectors: XLR
Line outputs: 2
Line output connectors: XLR
Operating voltage: Switching Power Supply, 180 - 264 V AC, 47 - 63 Hz
Cabinet material: 15 mm Birch Plywood
Cabinet surface: PA painting
Cabinet construction: vented
Monitor angle: 50°
