Planet IGS-6325-8UP2S2X

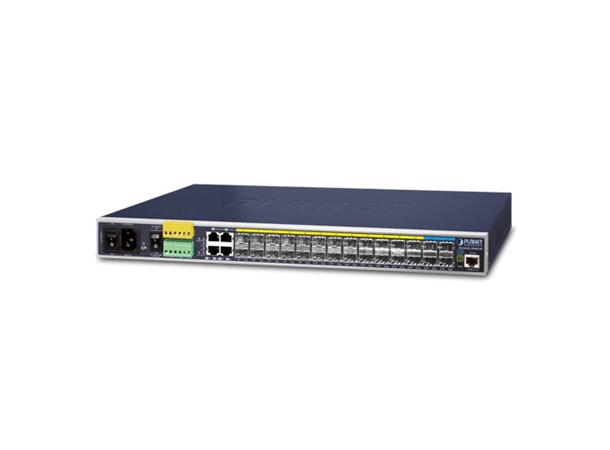

Industrial L3 24-Port SFP 10/100/1000T + Shared 4-Port 100/1000BaseT Managed Ethernet Switch

High Availability Mesh Networking Solution for Big Data System

IGS-6325-20S4C4X støtter opptil 158 Gbps datautvekslingshastighet via Fibe opp til 10km
IGS-6325-20S4C4X har sterk, rask,selvgjenopprettende evne for å forhindre avbrudd og eksterne inntrengninger.
Den inkorporerer ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) i kundens nettverk for å
forbedre systemets pålitelighet og oppetid. IGS-6325-20S4C4X er den ideelle løsningen for datasentre, tjenesteleverandører
og telekom for å bygge redundant tilkobling og etablere høy båndbredde som f.eks Big Data-serverfarm

Copper Ports

4 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports, shared with Port-1 to Port-4
SFP/mini-GBIC Slots 14 100/1000BASE-X SFP interfaces (Port-1 to Port-14) Compatible with 100BASE-FX SFP transceiver
10 100/1000/2500BASE-X SFP interfaces (Port-15 to Port-24) Compatible with 100BASE-FX and 2500BASE-X SFP transceiver

SFP+ Slots

4 10GbBASE-SR/LR SFP+ interfaces (Port-25 to Port-28)
Compatible with 1000BASE-SX/LX/BX and 2500BASE-X SFP transceiver

Console

1 x RS232-to-RJ45 serial port (115200, 8, N, 1)

Reset Button

< 5 sec: System reboot
> 5 sec: Factory default

Dimensions

(W x D x H)   440 x 200 x 44.5 mm, 1U height

Weight

2.935kg

Power Consumption AC input:

Max. 38.3 watts/131.4 BTU

DC input:

Max. 41.4 watts/142 BTU

Power Requirements

 – AC AC 100~240V, 50/60Hz 1A

Power Requirements

 – DC DC 24~60V, 2.25A

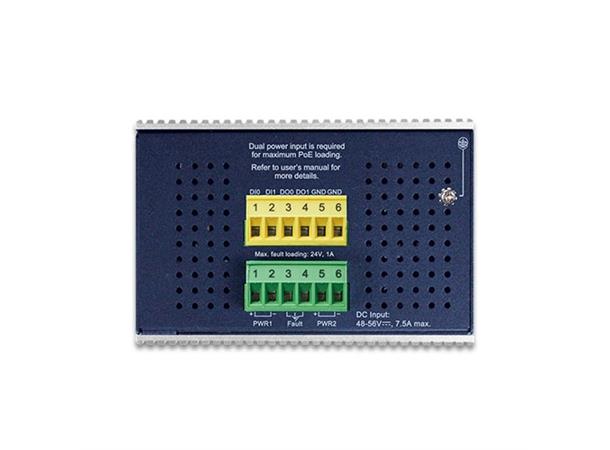

DI and DO

2 digital input (DI):
Level 0: -24~2.1V
Level 1: 2.1~24V
Max. input current: 10mA
2 digital output (DO):
Open collector to 24VDC, 100mA

EFT Protection 6KV DC

ESD Protection 6KV DC

LED Indicator System:

AC (Green), DC1 (Green), DC2 (Green), Fault (Red)
Ring (Green), DI/DO. (Red)
10/100/1000T RJ45 Interfaces (Port 1 to Port 4):
1000Mbps LNK/ACT (Green)
10/100Mbps LNK/ACT (Amber)
100/1000Mbps SFP Combo Interfaces (Port 1 to Port 4):
1000Mbps LNK/ACT (Green)
100Mbps LNK/ACT (Amber)
100/1000Mbps SFP Interfaces (Port 5 to Port 14):
1000Mbps LNK/ACT (Green)
100Mbps LNK/ACT (Amber)
100/1G/2.5Gbps SFP Interfaces (Port 15 to Port 24):
1G/2.5G LNK/ACT (Green)
100 LNK/ACT (Amber)
1/2.5/10Gbps SFP+ Interfaces (Port 25 to Port 28):
1G/2.5G LNK/ACT (Green)
10Gbps LNK/ACT (Amber)

Switching Specifications
Switch Architecture Store-and-Forward
Switch Fabric 158Gbps/non-blocking
Throughput 117.5Mpps@64Bytes
Address Table 32K entries, automatic source address learning and aging
Shared Data Buffer 32M bits
SDRAM 512MB
FLASH Memory 64MB
Flow Control IEEE 802.3x pause frame for full duplex
Back pressure for half duplex
Jumbo Frame 10K bytes
Layer 2 Management Functions
