ATEN CE980

USB True 4K DisplayPort/HDMI Optical KVM Extender

ATEN CE980 er en høyytelses KVM-extender som sikrer overføring av True 4K-video, KVM og styresignaler over én enkelt fiberkabel på opptil 300 meter. Med støtte for både DisplayPort og HDMI, HDR10 og avansert lyd, leverer den kompromissløs bildekvalitet og fleksibilitet for profesjonelle installasjoner.

Egenskaper

True 4K-video – støtter opptil 4096 x 2160 / 3840 x 2160 @ 60 Hz (4:4:4) med full fargenøyaktighet og HDR10
Fleksibel tilkobling – DisplayPort/HDMI kombokontakt på både lokal og ekstern konsoll for blandet bruk
Lang rekkevidde – fiberoptisk overføring opptil 300 m med 10 Gbps båndbredde (via SFP-modul 2A-141G)
Allsidig signaloverføring – KVM, RS-232, USB 2.0, samt stereo og embedded lyd inkludert LPCM 7.1CH, Dolby TrueHD, DTS-HD Master Audio
Dual Console Mode – lokal og ekstern systemkontroll med fleksible tilgangsnivåer (Auto/Local eller Auto/Remote)
USB 2.0 Hub – 2 porter for tastatur/mus og 2 for øvrige USB-enheter
Pålitelig drift – hotkey-basert EDID-prioritet, PC-wake-up via RS-232, stabil strømtilkobling med skrulås og innebygd ESD-beskyttelse
Enkel installasjon – plug-and-play, rack-monterbar og firmware-oppgraderbar

Bruksområder

ATEN CE980 er ideell for helseteknologi, postproduksjon, industri, produksjonsanlegg og andre krevende miljøer som krever langdistanse KVM-forlengelse med høy bildekvalitet, robust lyd og full systemkontroll.

Aten USB DP/HDMI KVM Extender 4K Max 300 m

Tilbehør

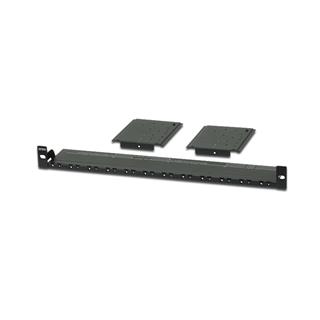

Aten Video Extender Rack Mount Kit

Alternativer

Artikler

Antall artikler funnet:

Aten USB DP/HDMI KVM Extender 4K

Max 300 m

Varenr: CE980-AT-G

24 515,00

Logg inn for å se dine nettopriser.Ikke kunde enda? Søk her.

Produkt

Bestillingsvare (10 dager)

Du er kr. 3 000,00 unna å få fri frakt

Beskrivelse

ATEN CE980

USB True 4K DisplayPort/HDMI Optical KVM Extender

Egenskaper

True 4K-video – støtter opptil 4096 x 2160 / 3840 x 2160 @ 60 Hz (4:4:4) med full fargenøyaktighet og HDR10
Fleksibel tilkobling – DisplayPort/HDMI kombokontakt på både lokal og ekstern konsoll for blandet bruk
Lang rekkevidde – fiberoptisk overføring opptil 300 m med 10 Gbps båndbredde (via SFP-modul 2A-141G)
Allsidig signaloverføring – KVM, RS-232, USB 2.0, samt stereo og embedded lyd inkludert LPCM 7.1CH, Dolby TrueHD, DTS-HD Master Audio
Dual Console Mode – lokal og ekstern systemkontroll med fleksible tilgangsnivåer (Auto/Local eller Auto/Remote)
USB 2.0 Hub – 2 porter for tastatur/mus og 2 for øvrige USB-enheter
Pålitelig drift – hotkey-basert EDID-prioritet, PC-wake-up via RS-232, stabil strømtilkobling med skrulås og innebygd ESD-beskyttelse
Enkel installasjon – plug-and-play, rack-monterbar og firmware-oppgraderbar

Bruksområder

Spesifikasjoner

Console Ports 4 x USB Type A Female (White)
1 x DisplayPort/HDMI Female (Black)
1 x Mini Stereo Jack Female (Green)
1 x Mini Stereo Jack Female (Pink) 4 x USB Type A Female (White)
1 x DisplayPort/HDMI Female (Black)
1 x Mini Stereo Jack Female (Green)
1 x Mini Stereo Jack Female (Pink)
KVM Ports 1 x USB Type B Female (White)
1 x DisplayPort/HDMI Female (Black)
1 x Mini Stereo Jack Female (Green)
1 x Mini Stereo Jack Female (Pink) N/A
RS-232 1 x DB-9 Female (Black) 1 x DB-9 Male (Black)
Power 1 x DC Jack (Black) 1 x DC Jack (Black)
Unit To Unit 1 x bi-directional SFP+ (LC) 1 x bi-directional SFP+ (LC)
Video
Max. Resolution Up to 4096 x 2160 @ 60Hz (4:4:4) / 3840 x 2160 @ 60Hz (4:4:4) Up to 4096 x 2160 @ 60Hz (4:4:4) / 3840 x 2160 @ 60Hz (4:4:4)
LEDs
Video Input 1 (Orange) N/A
Console Status 3 (Orange) 3 (Orange)
Video Output N/A 1 (Orange)
Link 1 (Orange) 1 (Orange)
Power 1 (Green) 1 (Green)
Switches
Operation Mode Selection 1 x Pushbutton 1 x Pushbutton
Wakeup PC N/A 1 x Pushbutton
Fiber Optics
Operating Distance 300 m with Multi Mode (MM) fiber (*Note) 300 m with Multi Mode (MM) fiber (*Note)
Data Rate Single fiber: 10 Gbps Single fiber: 10 Gbps
Power Consumption DC12V:11.89W:86BTU/h

Note:
? The measurement in Watts indicates the typical power consumption of the device with no external loading.
? The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Environmental
Operating Temperature 0–40°C 0–40°C
Storage Temperature -20–60°C -20–60°C
Humidity 0–80% RH, Non-condensing 0–80% RH, Non-condensing
Physical Properties
Housing Metal Metal
Weight 0.85 kg ( 1.87 lb ) 0.84 kg ( 1.85 lb )
Dimensions (L x W x H) 17.82 x 15.62 x 2.88 cm
(7.02 x 6.15 x 1.13 in.) 17.82 x 15.62 x 2.88 cm
(7.02 x 6.15 x 1.13 in.)
Note 1. Operating distance is approximate. A typical maximum distance may vary depending on factors such as fiber type, bandwidth, connector splicing, losses, modal or chromatic dispersion, environmental factors, and kinks.
2. It is recommended that you use Multi Mode fibers that conform to IEC 11801 (OM3) specifications.
3. The Device is class 1 laser product. It meet the safety regulations of IEC-60825, FDA 21 CFR 1040.10, and FDA 21 CFR 1040.11. 1. Operating distance is approximate. A typical maximum distance may vary depending on factors such as fiber type, bandwidth, connector splicing, losses, modal or chromatic dispersion, environmental factors, and kinks.
2. It is recommended that you use Multi Mode fibers that conform to IEC 11801 (OM3) specifications.
3. The Device is class 1 laser product. It meet the safety regulations of IEC-60825, FDA 21 CFR 1040.10, and FDA 21 CFR 1040.11.
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

True 4K HDMI Local Remote
640 x 480 @ 60/67/72/75 Hz 640 x 480 @ 60/67/72/75 Hz
640 x 480 60 Hz (4:3) 720 x 400 @ 70 Hz
720 x 400 @ 70 Hz 800 x 600 @ 56/60/72/75 Hz
800 x 600 @ 56/60/72/75 Hz 1024 x 768 @ 60/70/75 Hz
1024 x 768 @ 60/70/75 Hz 1280 x 800 @ 60 Hz
1280 x 800 @ 60 Hz 1280 x 1024 @ 60/75 Hz
1280 x 1024 @ 60/75 Hz 1400 x 1050 @ 60 Hz
1400 x 1050 @ 60 Hz 1440 x 900 @ 60 Hz
1440 x 900 @ 60 Hz 1600 x 1200 @ 60 Hz
1600 x 1200 @ 60 Hz 1680 x 1050 @ 60 Hz
1680 x 1050 @ 60 Hz 1920 x 1080 @ 60/120/144/240 Hz
1920 x 1080 @ 60/120/144/240 Hz 1920 x 1200 @ 60 Hz / 60 Hz (Reduced Blanking)
1920 x 1200 @ 60 Hz 1080p @ 24/25/30/50/60 Hz
1920 x 1200 @ 60 Hz (Reduced Blanking) 1080i @ 50/60 Hz
1080p @ 24/25/30/50/60 Hz 720p @ 50/60 Hz
1080i @ 50/60 Hz 576p @ 50 Hz (4:3/16:9)
720p @ 50/60 Hz 480p @ 60 Hz (4:3/16:9)
576p @ 50 Hz (4:3, 16:9) 640 x 480 @ 60 Hz (4:3)
480p @ 60 Hz (4:3, 16:9) 3840 x 2160p @ 24/25/30/50/60 Hz
3840 x 2160p @ 24/25/30/50/60 Hz 3840 x 2160p @ 50/60 Hz (4:2:0)
3840 x 2160p @ 50/60 Hz (4:2:0) 4096 x 2160p @ 24/25/30/50/60 Hz
4096 x 2160p @ 24/25/30/50/60 Hz 4096 x 2160p @ 50/60 Hz (4:2:0)
4096 x 2160p @ 50/60 Hz (4:2:0)
True 4K DP 640 x 480 @ 60/75 Hz 640 x 480 @ 60/75 Hz
800 x 600 @ 60/75 Hz 800 x 600 @ 60/75 Hz
1024 x 768 @ 60/75 Hz 1024 x 768 @ 60/75 Hz
1280 x 800 @ 60 Hz 1280 x 800 @ 60 Hz
1280 x 1024 @ 60/75 Hz 1280 x 1024 @ 60/75 Hz
1400 x 1050 @ 60 Hz 1400 x 1050 @ 60 Hz
1440 x 900 @ 60 Hz 1440 x 900 @ 60 Hz
1600 x 1200 @ 60 Hz 1600 x 1200 @ 60 Hz
1680 x 1050 @ 60 Hz 1680 x 1050 @ 60 Hz
1920 x 1080 @ 60 Hz 1920 x 1080 @ 60 Hz
1920 x 1200 @ 60 Hz / 60 Hz (Reduced Blanking) 1920 x 1200 @ 60 Hz / 60 Hz (Reduced Blanking)
1080p @ 50/60/120/144 Hz 1080p @ 50/60/120/144 Hz
480p @ 60 Hz 480p @ 60 Hz
720p @ 50/60 Hz 720p @ 50/60 Hz
3840 x 2160p @ 24/25/30/50/60 Hz 3840 x 2160p @ 24/25/30/50/60 Hz
4096 x 2160p @ 24/25/30/50/60 Hz 4096 x 2160p @ 24/25/30/50/60 Hz
