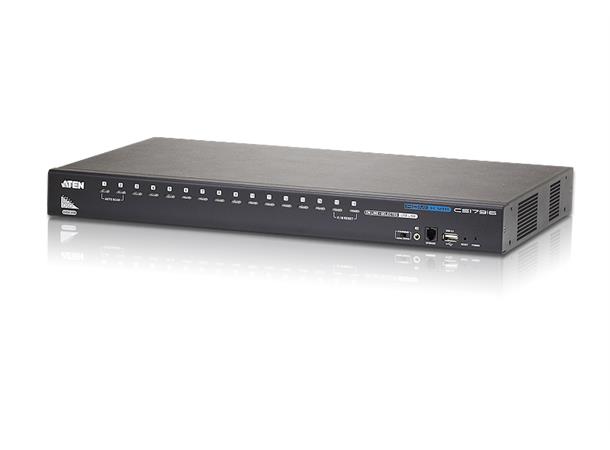

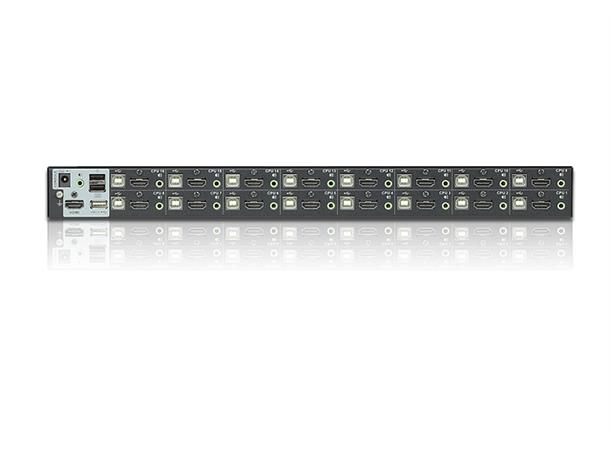

Aten CS17916
16-Port USB HDMI KVM Switch
The CS17916 16-port USB HDMI KVM Switch is a multi-purpose appliance that consolidates access and control of up to 16 HDMI computers from a single USB keyboard, USB mouse, and monitor console.
One USB console controls up to sixteen HDMI interface computers and two additional USB 2.0 devices
HDMI compatible
Cascadable to two levels–control up to 256 computers
Multi-Display feature – stack up to eight CS17916 units and display video from up to eight monitors(dual display/triple display/quad display/multi-display)
2-port USB 2.0 hub built in
Computer selection via front panel pushbuttons, hotkeys, and multilingual on-screen display (OSD)
Independent switching of KVM and USB focus
OSD Backup/Restore feature–enables the administrator to back up the switch’s configuration and user profile information
Firmware upgradable
Video DynaSync™ – exclusive ATEN technology eliminates boot-up display problems and optimizes resolution when switching between ports
Superior video quality–supports up to 1080p / 1920 x 1200@60Hz
Supports widescreen resolutions
Audio enabled–full bass response provides a rich experience for 2.1 channel surround sound systems
Console audio ports on front panel for easy access
Auto Scan Mode for monitoring all computers
HDCP compatible
Multiplatform support–Windows, Linux, Mac, Sun
Console mouse port emulation/bypass feature supports most mouse drivers and multifunction mice
Complete keyboard emulation for error-free booting
Mac/Sun keyboard support and emulation*1.2.
Multilingual OSD supports English, German, Japanese, Traditional Chinese, Simplified Chinese, Spanish, Russian, and French
Multilingual keyboard mapping – supports English (US), English (UK), German (GER.), German (SWISS), French, Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish, Traditional Chinese, and Simplified Chinese
Note : Enable mouse emulation for independent switching
1. For PC compatible computers. Mac and Sun computers must be compatible with USB connections.
2. PC keyboard combinations emulate Mac/Sun keyboards; Mac/Sun keyboards work only with their own computers.
Kabler inkludert:
2x 2L-7D02UH Custom USB HDMI KVM Cable Sets (1.8m)
