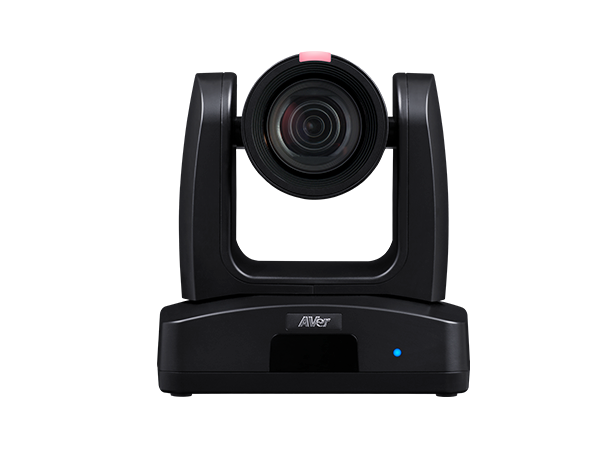

Specifications
Camera
Image Sensor
1/2.8” 1080p Sony Exmor CMOS
Effective Picture Elements
2 Megapixels
Output Resolutions
1080p/60, 1080p/59.94, 1080p/50, 1080p/30, 1080p/29.97, 1080p/25, 1080i/60, 1080i/59.94, 1080i/50, 720p/60, 720p/59.94, 720p/50
Minimum Illumination
0.46 lux (IRE50, F1.6, 30fps)
S/N Ratio
= 50 dB
Gain
Auto, Manual
TV Lines
1000 (Center)
Shutter Speed
1/1 to 1/32,000 sec
Exposure Control
Auto, Manual, Priority AE (Shutter, IRIS), BLC, WDR
White Balance
Auto, Manual, ATW, One Push, Indoor, Outdoor
Optical Zoom
12X
Digital Zoom
12X
Total Zoom
144X
Viewing Angles
DFOV: 80.6° (Wide) to 7.7° (Tele)
HFOV: 72.8° (Wide) to 6.7° (Tele)
VFOV: 44.1° (Wide) to 3.8° (Tele)
Focal Length
f = 3.9 mm (Wide) to 46.8 mm (Tele)
Aperture (Iris)
F = 1.6 (Wide) to 2.8 (Tele)
Minimum Working Distance
0.3 m (Wide)
1.5 m (Tele)
Pan / Tilt Angles
Pan : ±170°
Tilt : +90° / -30°
Pan / Tilt Speed (Manual)
Pan : 0.1° to 100° / sec
Tilt : 0.1° to 100° / sec
Preset Speed
Pan : 200° / sec
Tilt : 200° / sec
Preset Positions
10 (IR)
256 (RS-232, RS-422, IP)
Camera Control - Interfaces
RS-232 (DIN8)
RS-422 (RJ45)
IP
Camera Control - Protocols
VISCA (RS-232 / RS-422 / IP)
PELCO-D & PELCO-P (RS-232 / RS-422)
CGI (IP)
ONVIF
Image Processing
Noise Reduction (2D / 3D)
Flip
Mirror
Power Frequencies
50 Hz, 60 Hz
AI Function
Mode
SmartShoot
Audio
Channels
2ch Stereo
Codecs
AAC-LC
Interface
Video Outputs
3G-SDI, HDMI, IP, USB
Audio Outputs
3G-SDI, HDMI, IP, USB
Audio Inputs
MIC in, Line in
General
Power Requirement
AC 100 - 240V to DC 12V/2A
Power Consumption
19W
PoE
PoE+
Dimensions (W x H x D)
180.0 x 192.0 x 145.0 mm
Net Weight
2.0 (±0.1) kg
Application
Indoor
Tally Lamp
Yes
Security
Kensington Slot
Remote Control
Infrared
Operating Conditions
Temperature : 0 °C to +40 °C ; Humidity : 20% to 80%
Storage Conditions
Temperature : -20 °C to +60 °C ; Humidity: 20% to 95%
IP Streaming
Resolution
1080p 60fps
Network Video Compress Formats
H.264, H.265, MJPEG
Maximum Frame Rate
1080p 60fps
Bit-Rate Control Modes
VBR, CBR (selectable)
Range of Bit-Rate Setting
512 Kbps to 120 Mbps
Network Interface
10 / 100 / 1000 Base-T
Multi-Stream Capability**
5
1080p 60fps: RTSP, HDMI, USB, NDI® HX3 / Dante AV-H & 3G-SDI
Network Protocols
IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, HTTPS, DHCP, RTP / RTCP, RTSP, RTMP, SRT, HLS, NDI, LLDP, VISCA over IP
AV over IP Protocols
NDI® HX3 & Dante AV-H
USB
Connector
USB 3.1
Video Formats
MJPEG, YUY2
Maximum Video Resolution
1080p
USB Video Class (UVC)
UVC 1.1
USB Audio Class (UAC)
UAC 1.0
Web UI
Live Video Preview
Yes
Camera PTZ Control
Pan, Tilt, Zoom, Focus, Preset Control
Camera / Image Adjustment
Exposure, White Balance, Picture
Network Configuration
DHCP, IP Address, Gateway, Subnet Mask, DNS
Supported Web Browsers
Chrome™, Microsoft Edge, Safari®
Software Tools
IP Search and Configuration Tool
Support Windows® 7 or later
Enterprise Management (PTZ Management)
Support Windows® 10 or later
Control Panel
Supports iOS & iPadOS® 11 or later
PTZ Link
Supports Windows® 7 or later, macOS® 10.14 or later
OBS Plugin for PTZ Cameras
Supports Windows® 8 or later, macOS® High Sierra v10.13 or later
CaptureShare
Supports Windows® 7 or later, macOS® 10.14 or later
Room Management (PTZApp 2)
Supports Windows® 7 or later, macOS® 11.6 or later
Cloud Management
Supports Chrome™ & Microsoft Edge browsers
Warranty
Camera
5 Years
Accessories
1 Year
Package Contents
Camera, Drilling Paper, Ceiling Mount Bracket (x2), Quick Start Guide, Cable Fixing Plate (x2), M2 x 4 mm Screw (x3), Power Adapter & Power Cord, 1/4”-20 L=6.5 mm Screw (x2), Remote Control, M3 x 6 mm Screw (x3), DIN 8 to D-Sub 9 Cable, RS-232 In/Out Y Cable, Cable Tie (x4)
Optional Accessories
AVer CL01 PTZ Camera Controller, L-Type Wall Mount
* Specifications may vary depending on location and are subject to change without notice. If you have any questions about specifications, please contact your regional dealer.
** When choosing NDI® HX3 Mode, USB video will be disabled.
