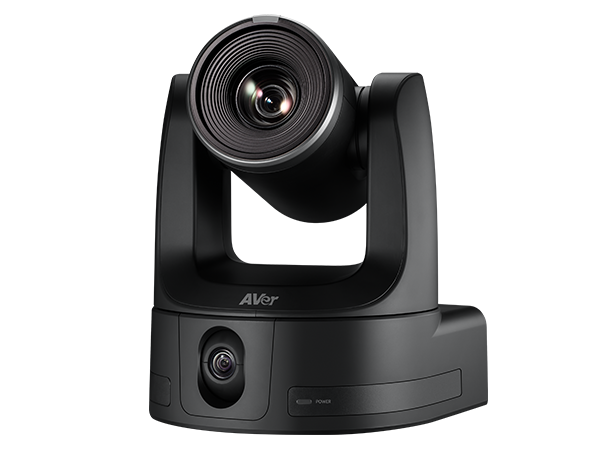

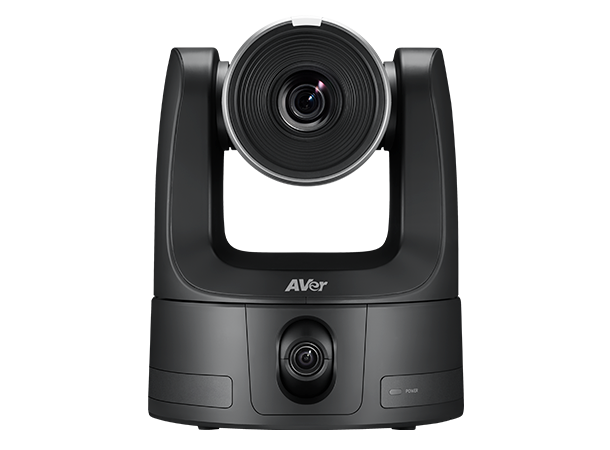

AVer TR615

Dual-Lens Auto Tracking-kamera

AVer TR535 er et dual-linse kamera med AI-basert autotracking for ulike produksjonsmiljøer. Det kombinerer 30× optisk zoom med en vidvinkellinse som dekker hele området, mens 4K-PTZ-modulen håndterer detaljerte nærbilder. Kameraet støtter fire AI-styrte sporingsmoduser, og er utviklet for presis og stabil tracking i produksjon, strømming og opptak.

• Image Sensor 1/2.8” 4K Exmor CMOS
• Effective Picture Elements 8 Megapixels
• Output Resolutions:4K/60, 4K/59.94, 4K/50, 4K/30, 4K/29.97, 4K/25,1080p/60, 1080p/59.94, 1080p/50, 1080p/300, 1080p/29.97, 1080p/25,1080i/60, 1080i/59.94, 1080i/50, 720p/60, 720p/59.94, 720p/50
• Minimum Illumination 0.5 lux (IRE50, F1.6, 30fps)
• S/N Ratio = 50 dB
• Gain Auto, Manual
• Shutter Speed 1/1 to 1/10,000 sec
• Exposure Control Auto, Manual, Priority AE (Shutter, IRIS), BLC, WDR
• Optical Zoom 30X
• Digital Zoom 1X
• Total Zoom 30X
• Viewing Angles
• DFOV: 69.2° (Wide) to 2.8° (Tele)
• HFOV: 62.3° (Wide) to 2.5° (Tele)
• VFOV: 37.3° (Wide) to 1.4° (Tele)
• Focal Length f = 4.5 mm (Wide) to 135 mm (Tele)
• Aperture (Iris) F = 1.8 (Wide) to 4.7 (Tele)
• Minimum Working Distance 0.1 m (Wide), 1.2 m (Tele)
• Pan / Tilt Angles Pan: ±170°, Tilt: +90° / -30°
• Pan / Tilt Speed (Manual) Pan: 0.1° to 100° / sec, Tilt: 0.1° to 100° / sec
• Preset Speed Pan: 200° / sec, Tilt : 200° / sec
• Preset Positions 10 (IR), 256 (RS-232 / RS-422 / IP)

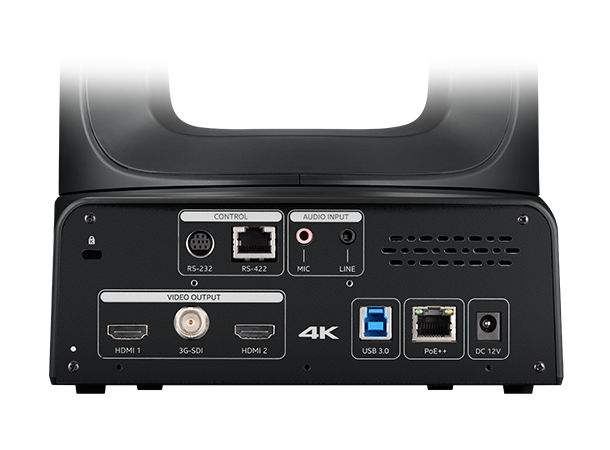

• Camera Control - Interface RS-232 (DIN8), RS-422 (RJ45), IP, USB
• Camera Control - Protocols VISCA (RS-232 / RS-422 / IP), PELCO-D & PELCO-P (RS-232 / RS-422), CGI (IP), USB, ONVIF
