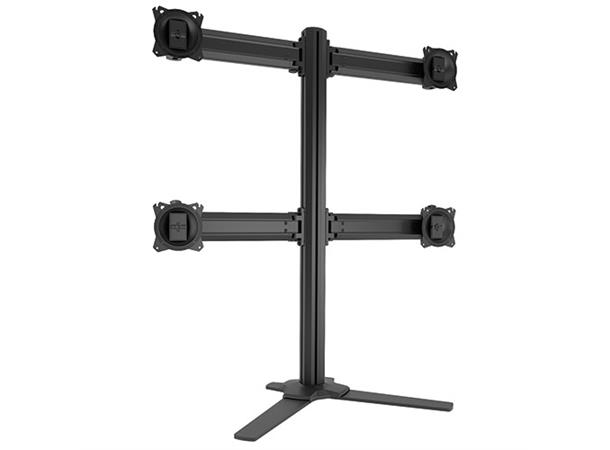

KONTOUR™ Free Standing 2x2 Array
Flexibility meets form and function with the K3 Series of elegantly designed, solid array mounts from Chief.
Provides an aesthetic, stable solution for call centers, security desks, IT, health care, control rooms and other multiple monitor settings.
Clamp accessory available for all K3 Series array mounts.
•Portable Centris heads can easily be moved along the array arm for lateral adjustment
•Accommodates monitors up to 27"
•Centris technology in heads on the rails provides smooth, fingertip 12 degree tilt in all directions
•Independent height adjustment of each arm
•Array arms can be adjusted from flat up to a 15 degree angle toward the user
•Teardrop hole pattern makes mounting monitors quick and easy
•VESA 75 x 75 mm and 100 x 100 mm compatible
•Tool-free, integrated cable management
Mounting Pattern Compatibility (Universal Versions): 75 x 75mm, 100 x 100mm
Notes: Weight capacity is per monitor
Orientation: Landscape, Portrait
Overall Dimensions (H x W x D): 992.2 x 864.1 x 393.6mm
Post-Installation Leveling (Roll): Yes
Solution Type: Universal
Tilt: 12 degrees
Typical Screen Sizes: 10 - 24"
Weight Capacity: 15 lb (6.8 kg)
