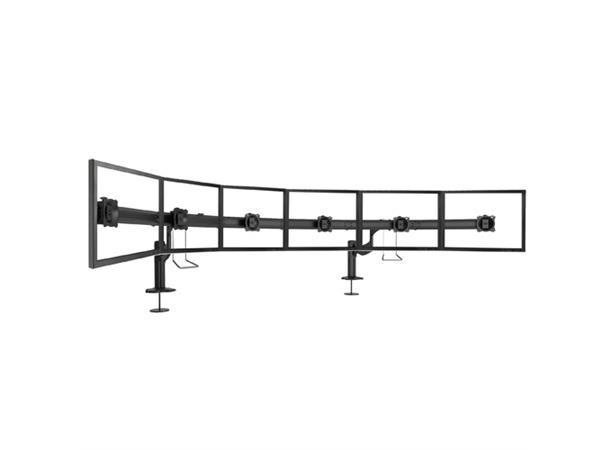

KONTOUR™ K4 6x1 Grommet Mounted Array
Chief's K4-series was awarded the 2013 rAVe Best of InfoComm award for Best New AV Mount!
Flexibility meets form and function with the Kontour™ K4 Series of elegantly designed, Focal Depth Adjustable monitor array mounts from Chief.
Provides an aesthetic & easily adjustable solution for monitor array stations where multiple users will want to re-position the bank of screens to their preferred viewing distance; such as trading desks, call centers, security desks, IT, health care, control rooms and more.
•Articulating Focal Depth Adjustable 6x1 Monitor Array
•Integrated handles for quick ergonomic adjustment to fit the user
•Great for multi-user settings where fast & easy adjustment is critical!
•Supports monitors up to 24" in both landscape & portrait
•Swivel and Pan adjustment capability
•Centris™ Fingertip Tilt of every monitor
•Grommet or 1/2" Thru-Hole mounted
•Integrated cable management
•Streamlined modern aesthetic
Center of Display to Floor/Table Range: 11.47" to 18.22" (291 mm to 463 mm)
Desktop Thickness Range: 1" - 4.94" (25 - 125.5 mm)
Maximum Extension: 12.0" (305 mm) minimum
Minimum Depth: 32.1" (815 mm)
Mounting Method: Grommet and 1/2" Thru-Hole
Mounting Pattern Compatibility (Universal Versions): VESA 75mm x 75mm & 100mm x 100mm
Notes: TAA Compliant
Number of Monitors: 6
Orientation: Landscape & Portrait
Screen Array Configuration: 6 x 1
Shipping Weight: 31 kg
Tilt: +/- 12 degrees
TV Width Range: Up to 23.0" (584 mm) max display width
Typical Screen Sizes: 19" to 24" diagonal
Weight Capacity: Up to 15 lbs. (6.8 kg) per monitor
