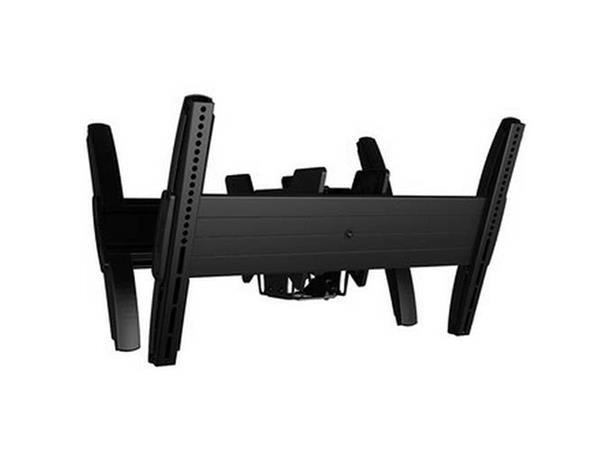

Chief FUSION™ Large Flat Panel Ceiling Mount



Chiefs FUSION™ Flat Panel Ceiling Mounts are installer inspired and offer perfect display positioning and flexible adjustments for large flat panel screens. Great for digital signage installations.
•Ceiling Plate and Extension Column are required and must be ordered separately
•Compatible with traditional 1.5" NPT and new CPA pinned ceiling plates and column system
•See ceiling plates and extension columns (Adjustable and Fixed) for 1.5" NPT compatibility
•See CPA ceiling plates and CPA columns for pin connection compatibility
•Stackable on a single pole when used with CPA columns

Key Features
•REPEATABILITY
?Continuous tilt ranges with four set locking points to eliminate guess work when adjusting multiple screens.
•ACCESSIBILITY
?Simple on/off connection for ease of installation and service.
•CENTRIS® FINGERTIP TILT
?Effortlessly adjust display using Centris fingertip tilt technology.
•SIMPLE & SECURE
?Tool free screen engagement with optional padlock security.
•FLEXIBILITY
?Mount swivels to any preferred viewing angle.
?Stackable on a single pole when used with CPA columns

• Adjustments Roll, +/-3°
• Certifications UL Listed
• Color Black
• Equipment Weight Capacity 125 lbs (56.7 kg) per screen
• Mounting Pattern Compatibility (Universal Versions) 200 x 100 - 616 x 400 mm
• Number Of Monitors 2
• Orientation Landscape
• Overall Dimensions (H x W x D) 16.5 x 26.8 x 10.2" (420 x 681 x 259 cm)
• Shipping Weight 33 lbs (14.97 kg)
• Tilt +5°, -20°
• Typical Screen Sizes 32-60"
