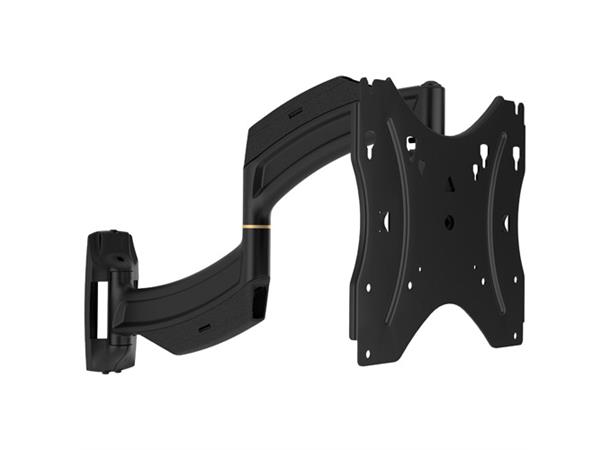

Small THINSTALL™ Dual Swing Arm Wall Mount
A lightweight, low-profile full-motion wall mount for TVs 10-32 .
•Ultra Low Profile Sleek design collapses to 38 mm, providing an ultra-low profile for all types of TVs, including LED, LCD and Plasma.
•Extends up to 457 mm Full extension maximizes viewing potential.
•Centris™ low-profile tilt Provides up to 12° of effortless fingertip tilt toachieve optimal viewing angles.
•Integrated Cable Management Enclosed, tool-free cable covers make it easy to route power and signal cables, and connect to the wall for a seamless installation.
Maximum Extension: 457mm
Maximum Screen Thickness: 127mm
Mounting Pattern Compatibility (Universal Versions): 75 x 75, 100 x 100, 200 x 100, 200 x 200mm
Orientation: Landscape, Portrait
Overall Dimensions (H x W x D): 294 x 330 x 38mm
Pivot (numerical value): ±90° (depending on screen width)
Post-Installation Leveling (Roll): Yes
Solution Type: Universal
Tilt: + 0° , - 12°
Typical Screen Sizes: 10 - 32"
Wall Stud Compatibility (inches): Single Stud
Weight Capacity: 15.9kg
