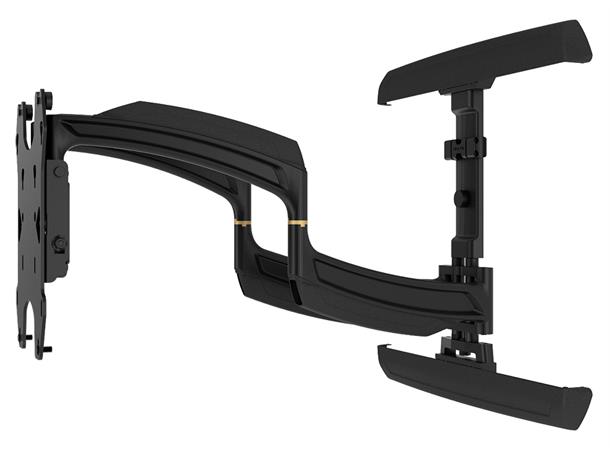

Chief TS318TU - Medium THINSTALL™ Dual Swing Arm Wall Mount - 18" Extension
A lightweight, low-profile full-motion wall mount for TVs 26-52" . Easily installs with one person by mounting the top rail and sliding on the assembly
Features
Ultra Low Profile Sleek design collapses to 33 mm, providing an ultra-low profile for all types of TVs, including LED, LCD and Plasma.
Extends up to 18" (457 mm) Full extension maximizes viewing potential.
Centris™ low-profile tilt Provides up to 15° of effortless fingertip tilt to achieve optimal viewing angles.
Centerless™ Lateral Shift Post-installation lateral shift allows up to 16" (406 mm) of adjustment for limitless centering capability.
Integrated Cable Management Enclosed, tool-free cable covers and a wide open wall plate make it easy to route power and signal cables, and connect to the wall for a seamless installation.
Spesifikasjoner:
- Color: Black
- Lateral Shift: 406.4mm
- Manual Height Adjustment: 1
- Maximum Extension: 462.3mm
- Minimum Depth: 33.mm
- Mounting Pattern Compatibility (Universal Versions): 100 x 100mm - 600 x 400mm
- Orientation: Landscape
- Overall Dimensions (H x W x D) 437 x 574 x 33mm
- Post-Installation Leveling (Roll): Yes
- Solution Type: Universal
- Tilt: + ° , - 15°
- Typical Screen Sizes: 26 - 52"
- Wall Stud Compatibility (inches): 16
- Weight Capacity: 34.kg
