19" Network cabinet according to DIN 41494

Steel sheet housing with welded frame, completely pre-assembled

Pre-assembled plinth 100 mm

Inside front and rear 4 x 19" profiles (2 front, 2 rear-sided), galvanised, depth-adjustable in 25 mm raster

Numbering of rack units at the 19" profiles

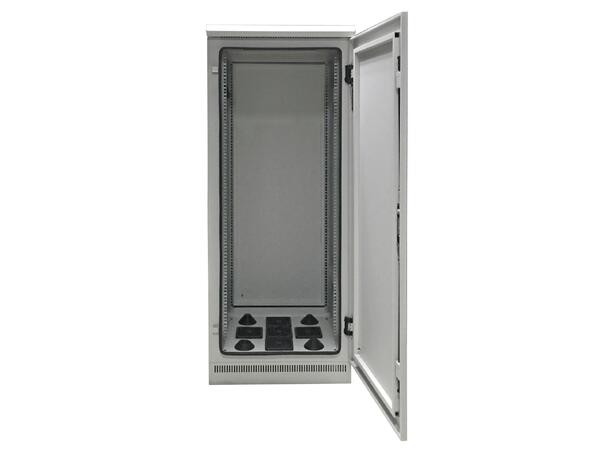

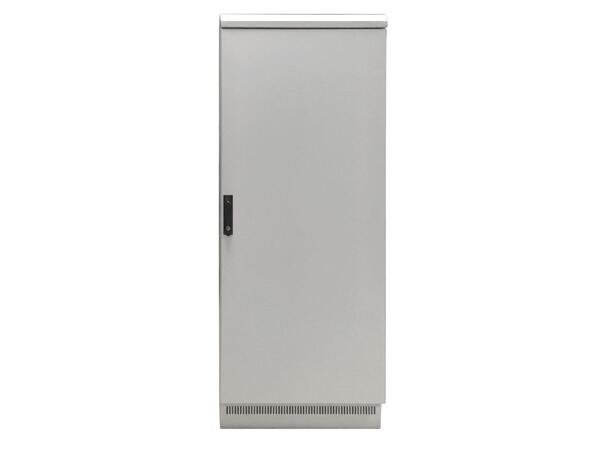

Front an rear door steel, 1-part

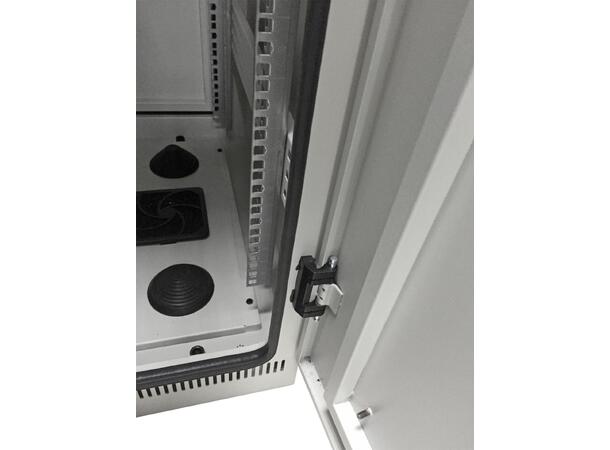

Front and rear door with 3-point locking with turning handle, lockable

Door opening angle front and rear > 120°

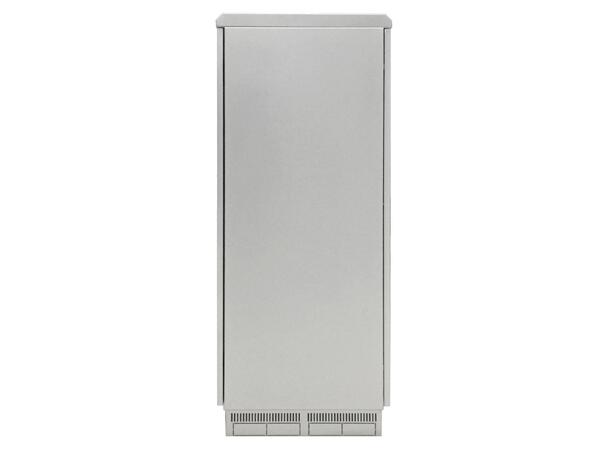

Side walls not detachable

Inner roof pre-punched openings for fan units

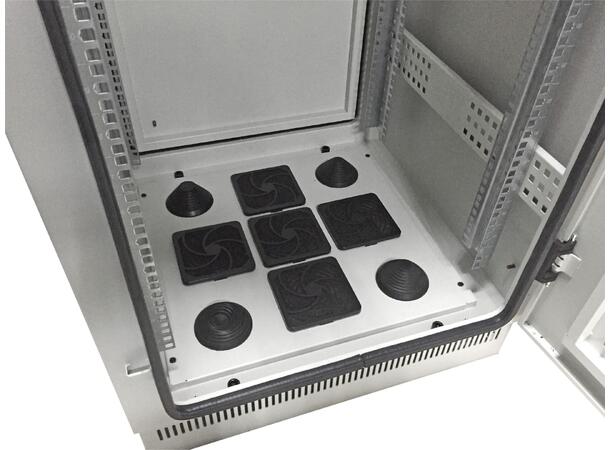

Bottom prepared with air inlet filters and rubber grommets Ø 80 mm for cable entry

Internal earthing of all cabinet sections

Max. load 1000 kg

Paint finish RAL7035, light grey

Protection degree IP55

Included accessories: 1 x set of captive nuts (PU 20 pcs.), pre-installed plinth, 2 x key

Delivery in transport packaging on disposable pallet
