Kramer Multiviewer 5-Channel 19"

3Gbps Cross Conversion IP RS232

Varenr: MV-5
62 167,00
Logg inn for å se dine nettopriser. Ikke kunde? Søk om forhandlerstatus.
-+
Bestillingsvare (11 dager)

Fri frakt på ordre over kr. 1000!

Du er kr. 1 000,00 unna å få fri frakt

BeskrivelseAlternativerSupport
Beskrivelse

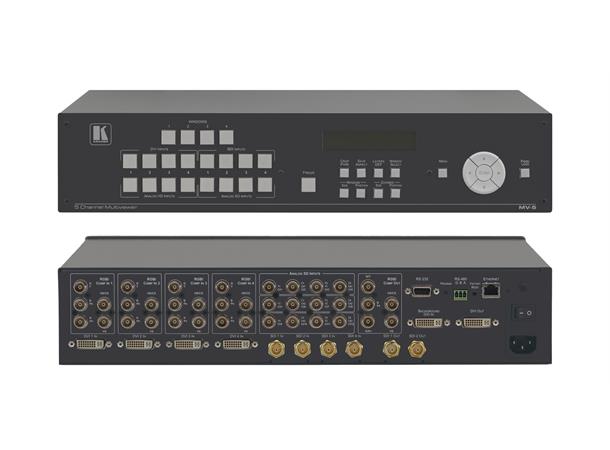

Kramer MV-5
5−Channel Multiviewer

Quick Facts
Max Data Rate − 3Gbps
Kramer Equalization & re−Klocking™
Format Conversion
Input Cable Equalization
Chroma−Key
Window & Image Scaling
Independent Layer Transparency Control
Proc Amp
16 Screen Layouts.
Control − Ethernet & RS−232.
Size - 19” (2U)

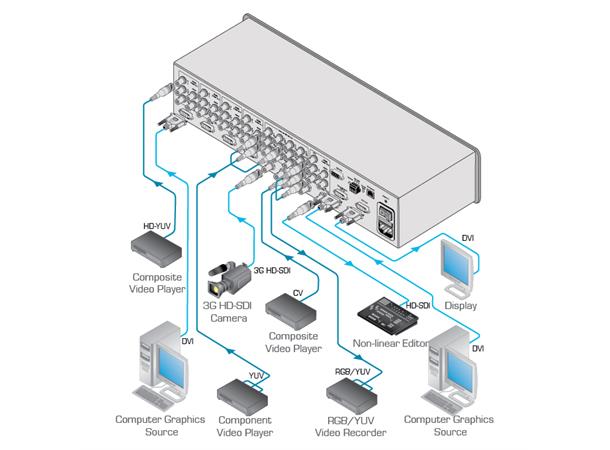

The MV−5 is a versatile, high−performance video and graphic multi−window viewer for DVI signals, SD and HD analog signals up to 1920x1200@60Hz, and SDI signals up to 3G HD−SDI. The device can window up to four sources (plus a background) in any layout and output the image as SDI, DVI, component and composite video signals. Both preprogrammed and customizable screen division is supported.

Max. Input Data Rate - 3Gbps.
Kramer Equalization & re-Klocking™ Technology - Rebuilds the digital signal to travel longer distances.
Multi-Video Output Formats - SD−SDI (259M), HD−SDI (292M) and 3G HD−SDI (SMPTE 424M), HDMI, HD, SD, analog and composite.
Powerful Cross Conversion - Any format to any format, any standard to any standard.
Input Cable Equalization - Up to 350m (1150ft) for SD signals, 140m (459ft) for 1.5GHz HD signals, and 120m (394ft) for 3GHz HD signals.
Chroma-Key Engines - Four independent chroma−key engines for each image layer.
Window and Image Scaling - Zooming (up to 1000%) and aspect ratio control.
Independent Layer Transparency Control.
Image Controls - Brightness, contrast, color and sharpness.
Window or Input Label Insertion.
16 User-Definable Screen Layouts.
Screen Handling Buttons - Freeze, size, position.
Lock Button - To prevent unwanted tampering.
Flexible Control Options - Front panel with menu LCD, on−screen display (OSD), Ethernet and RS−232.
Worldwide Power Supply - 100−240V AC.
Size - 19” (2U)
