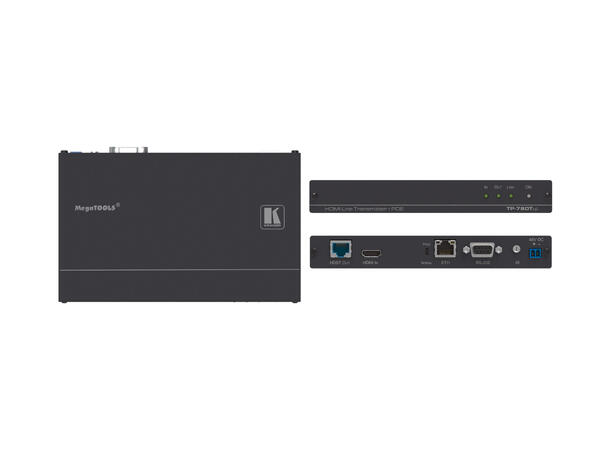

TP-780Txr
4K UHD HDMI, Bidirectional RS-232, IR
over Twisted Pair HDBaseT Transmitter with POE
Dette er kun Transmitter (Sender), se tilbehør for kompatibel Reciever (Sender)
TP-780Txr is a 4K UHD, twisted pair transmitter for HDMI, bidirectional RS-232 and IR signals. It supports resolutions up to 4K@60Hz (4:2:0) UHD. TP-780Txr converts HDMI, RS-232, and IR signals into a twisted pair signal that it transmits to a TP-780Rxr receiver. TP-780Rxr converts the twisted pair signal back into HDMI, bidirectional RS-232 and IR signals. TP-780Txr supports PoE (Power over Ethernet).
Max. Data Rate - 10.2Gbps (3.4Gbps per graphic channel).
Resolution Support - Up to 4K@60Hz (4:2:0) UHD.
HDTV Compatible.
HDCP Compliant.
HDBaseT™ Technology.
Power Over Ethernet - Allows a single HDBT LAN cable to provide both data and electrical power to compatible devices.
TP-780Txr Provides Power to TP-780Rxr.
HDMI Support - Deep Color, x.v.Color™, Lip Sync, HDMI Uncompressed Audio Channels, Dolby TrueHD, DTS-HD, CEC.
3D Pass-Through.
EDID PassThru - Passes EDID signals between the source and display.
