Audio
Driver:
LF Driver: 200 mm (8 in) with polypropylene cone, butyl rubber surround, copper–clad coil, vented aluminum former
Frequency characteristics
Frequency Range (-10dB): 45Hz–570Hz
Frequency Response (±3dB): 80Hz–500Hz
Dispersion angle: Omnidirectional
Power ratings
@ 8? Low impedance: 80W continuous / 120W peak
@ 100 V High impedance: 80W/40W/20W
@ 70 V High impedance: 80W/40W/20W/10W
Sound Pressure Level (SPL)
Sensitivity (1W@1m, free field): 84dB SPL
Maximum SPL: Continuous: 103dB SPL / Peak: 105dB SPL
MECHANICAL
Installation

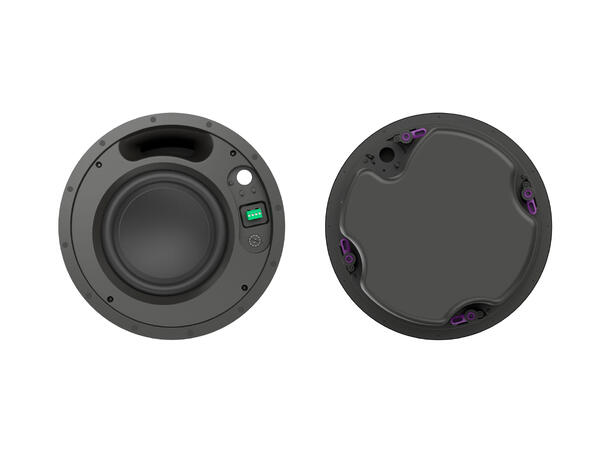

Type: In–ceiling speaker installation with brackets and C–ring
Mounting: 4–point screw down Dog–Ear clamp, up to 60mm / 2.36” ceiling thickness
Connectors: 4–pin pluggable Euroblock connector, 28–12AWG
Cutout: Cutout template included in the box
Weight per single speaker: 8.05kg (17.75lbs)
Dimensions
Depth (ceiling clearance): 315mm / 12.4”
Back enclosure outer diameter: 295mm / 11.62”
Cutout diameter: 297mm / 11.7”
Grill diameter: 327mm / 12.9”
Single box dimensions (single unit): 430mm x 430mm x 378mm / 17" x 17" x 15"
Master box dimensions (single unit): 438mm x 438mm x 391mm / 17.3" x 17.3" x 15.4"
o Master box weight: 11.4KG / 25.2lbs
Packaging: Eco–friendly mono–material packaging made entirely from recyclable cartons, designed for durability and ease of recycling
Material

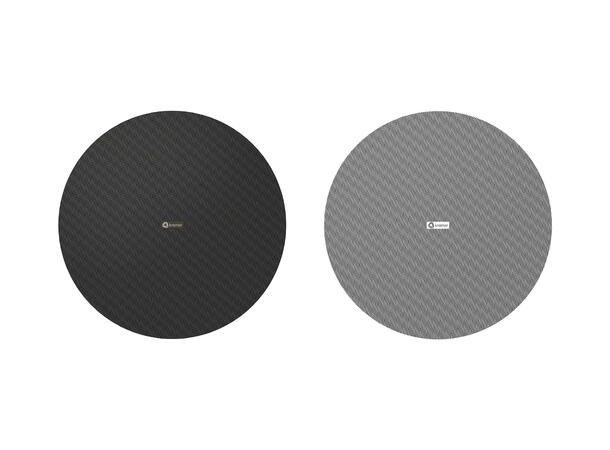

Grill: Black/White Powder Coated Steel, Magnetic, with cloth, paintable
Baffle: V–0 Flame Retardant
Back enclosure: Powder–coated steel
Environmental
Operating Temperature: –5° to +50°C (23° to 122°F)
Storage Temperature: –10° to +55°C (14° to 131°F)
Humidity: 30% to 85%, RHL non–condensing
BALANCED LINE LEVEL INPUT
Single Box weight: 10.6KG / 23.4lbs
REGULATORY
Safety
UL 2043 Certified: Plenum rated for safe use in air–handling spaces, meeting fire and smoke standards
UL1480A Certified: Meets safety standards for fire–protective signaling in commercial spaces
Environmental
: RoHS, REACH, WEEE
