LD Systems SAT 82 G2 W
8" Installation Monitor passive hvit

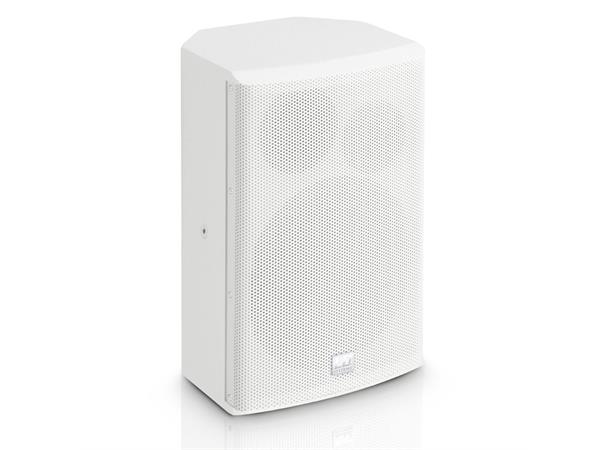

The LD Systems SAT82G2 is a compact, especially dependable 2-way speaker for demanding installation solutions. It blends unobtrusively into practically any surroundings and thus is also suitable for home systems.
The bass-reflex design is loaded with an 8" custom woofer and a 1 silk dome tweeter with wave guide, which permit powerful and extremely dynamic reproduction within a range of 50 Hz - 20 kHz with a dispersion angle of 60° and attain a maximum sound- level pressure of 114 dB. The LD SAT82G2 is rated for a continuous power load of 120 W.
The sturdy cabinet is made of 12mm MDF with a durable textured finish and is available in black and white. M6 rigging points and an included mounting bracket provide numerous possibilities for mounting. Additionally, a universal joint mount is available as an accessory. The SAT82G2 has spring terminal connectors.
Product number: LDSAT82G2
Product type: Installation Monitor
Low/mid driver dimensions: 8"
Low/mid driver dimensions (mm): 203mm
Woofer magnet: Ferrite
Woofer brand: Custom-made
HF driver dimensions: 1"
HF driver dimensions (mm): 25mm
HF driver magnet: Ferrite
HF driver brand: Custom-made
Dispersion (H x V): 60 x 60
Peak power: 200W
Frequency response: 50 - 20000Hz
SPL (1W/1m): 93dB
Max. SPL: 114dB
Protection circuits: HF Driver
Loudspeaker inputs: 1
Speaker input connections: Clamp connector
Cabinet material: 15 mm MDF
Cabinet / Housing surface: texture paint
Cabinet colour: White
Cabinet construction: vented
