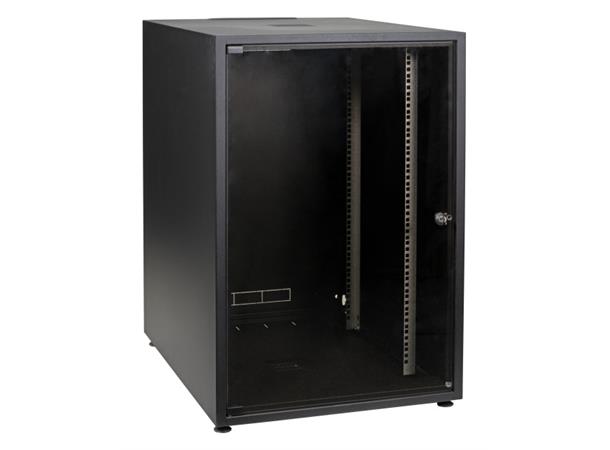

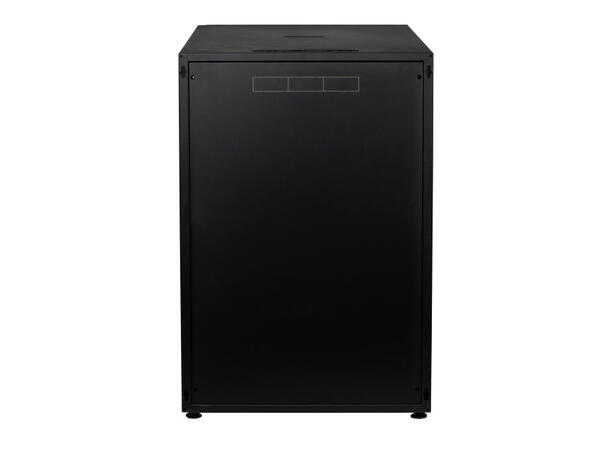

19" Network Cabinet Office 18U, RAL9005

Bredde/Dybde: 600/800 mm



Ta kontakt for skap med andre dimensjoner.



Felles spesifikasjoner for alle størrelser

•19" Network cabinet according to DIN 41494
•Steel sheet housing , completely pre-assembled, self-ventilated.

•Inside front and rear 4 x 19" profiles (2 front, 2 rear-sided), galvanised, depth-adjustable

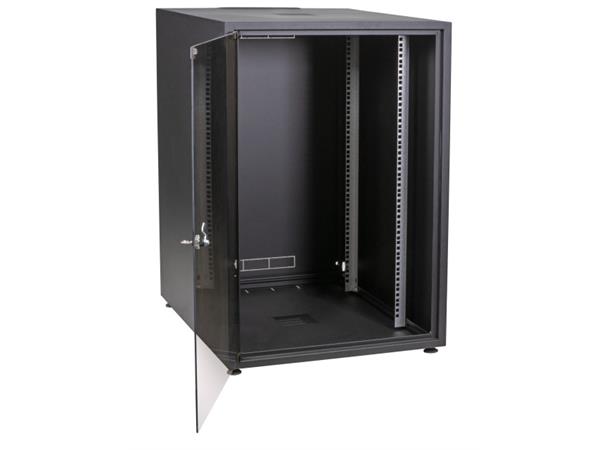

•Front door with window of certified safety glass (thickness 4 mm)
•Front door with 1-point turning handle and profile half-cylinder acc. to DIN 18252 / EN1303
•Profile half-cylinder exchangeable by customer (30/10 mm)
•Door mounting possible swiveling to the left and right side
•Roof and bottom prepeard for accommodation of fan/filter units
•Internal earthing of all cabinet sections
•Max. load 600 kg, increase to 1000 kg possible with traverse-set Art.-No. 691679N.x
•Paint finish RAL9005, black
•Protection degree IP20
•Included accessories: 1 x brush terminal, 4 x levelling feet M8, 2 x key
•Delivery in transport packaging on disposable pallet
