Specification
AV Interface: HDMI®
Interface Standard: 2.0
Supported Bandwidth: 18Gbps
Maximum Resolution: 4K60Hz 4:4:4 8bit
EDID presets:
DISPLAY
1080p LPCM
1080p DTS/DOLBY
4K30 LPCM
4K30 DTS/DOLBY
4K60 LPCM
4K60 DTS/DOLBY
USER DEFINED
HDCP Support: 2.2
Special Features: EDID upload, CEC and HDCP management

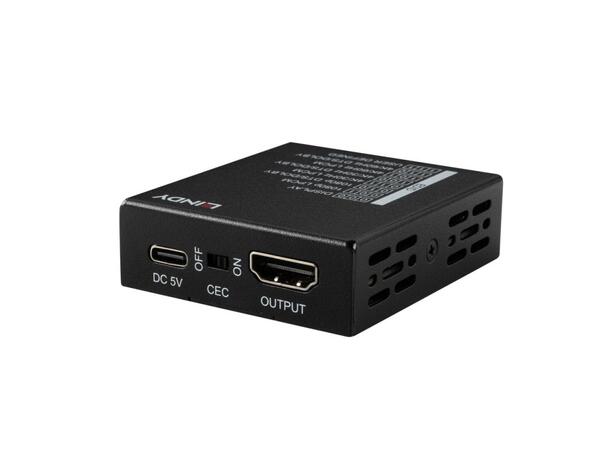

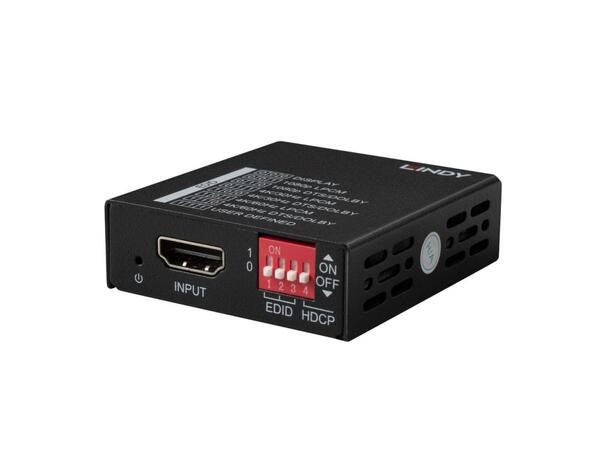

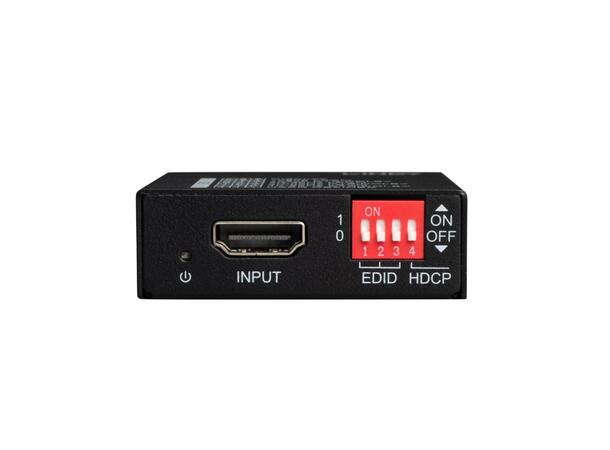

Connectors
Input: HDMI® (Female)
Output: HDMI® (Female)
Power: Type C (Female)
Physical Properties
Dimensions WxDxH: 54x60x18mm (2.13x2.36x0.71in)
Housing Material: Metal
Net Weight: 0.081kg (0.18lb)
Operating Temperature: -10°C - 55°C (14°F - 131°F)
Storage Temperature: -25°C - 70°C (-13°F - 158°F)
Humidity: 10 - 90% RH (non-condensing)
Colour: Black
Miscellaneous
Packaging Type: Carton box
Packaging Dimensions: 64x65x23mm (2.52x2.56x0.91in)
Gross Weight: 0.094kg (0.21lb)
Warranty (Years): 2
Product Compliance: CE, UKCA, FCC, RoHS, REACH, CP65
