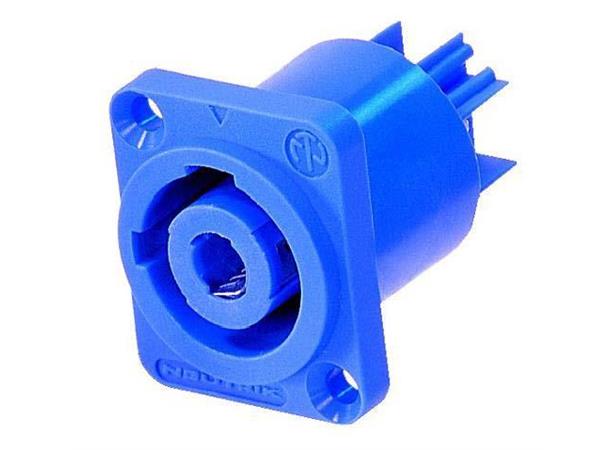

Chassis connector, power-in, 3/16'' flat tab terminals, blue



The powerCON is a locking 3 conductor equipment AC connector with contacts for line, neutral and pre-mating ground contact. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.



Attention: The powerCON is a connector without breaking capacity, i.e. the powerCON should not be connected or disconnected under load or live!



Features & Benefits
•Locking 20 A / 250 V ac appliance coupler
•3 contacts for line, neutral and premating safety ground
•Power-in (blue) and power-out (grey) versions with different keying to avoid the possibility of intermating
•Fast and easy twist lock latching system
•Extremely robust and reliable
•Ergonomic design
•User friendly latch design for easy handling
•UL, cUL recognized components
 VDE certified
 SEV approved
•Branded with unique hologram - guarantees genuine and authentic Neutrik product
