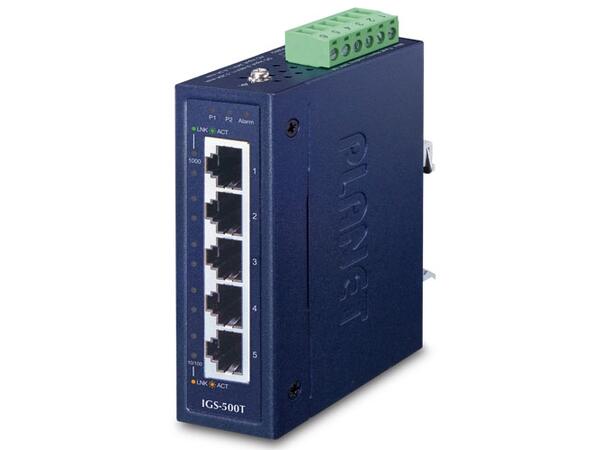

Hardware Specifications
Hardware Version 2
Copper Ports 5 x 10/100/1000BASET RJ45 TP auto-MDI/MDI-X, auto negotiation
Connector Removable 6-pin terminal block
Pin 1/2 for Power 1; Pin 3/4 for fault alarm; Pin 5/6 for Power 2
Alarm Provides one relay output for power failure
Alarm relay current carry ability: 1A@DC 24V

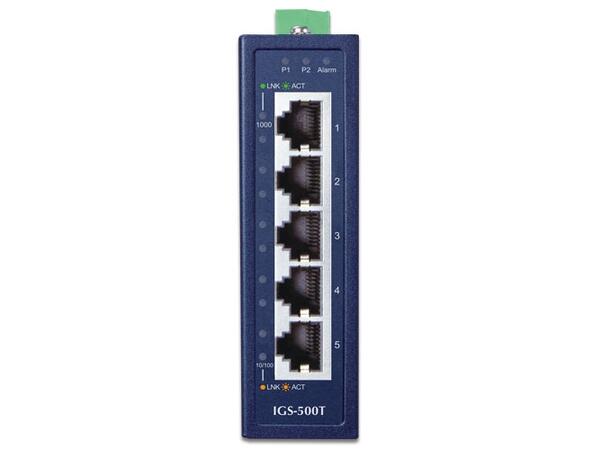

LED 3 x LED for system and power:
Green: DC Power 1
Green: DC Power 2
Red: Power Alarm
2 x LED for each copper port:
Green: 1000Mbps LNK/ACT
Amber: 10/100Mbps LNK/ACT
ESD Protection 6KV
EFT Protection 6KV
Power Requirements 9~48V DC, redundant power with polarity reverse protection function, 24V AC power support
Power Consumption / Dissipation 1.2 watts/4.09BTU
Installation DIN-rail kit and wall-mount ear
Enclosure IP30 metal case
Dimensions (W x D x H) 30 x 70 x 104 mm
Weight 264g
Switch Specifications
Switch Processing Scheme Store-and-Forward
Address Table 2K entries
Buffer Memory 4M bits on-chip buffer memory
Flow Control Back pressure for half duplex
IEEE 802.3x pause frame for full duplex
Switch Fabric 10Gbps
Throughput (packet per second) 7.4Mpps@64bytes
Jumbo Frame 9K

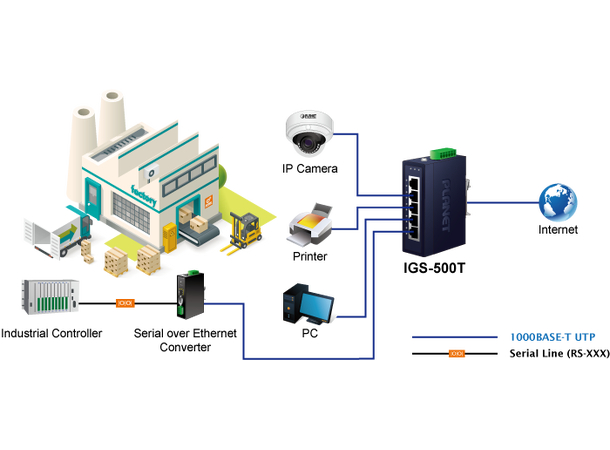

Network Cables 10/100/1000BASE-T
Cat. 3, 4, 5, 5e, 6 UTP cable (max. 100 meters)
EIA/TIA-568 100-ohm STP (max. 100 meters)
Standards Conformance
Standards Compliance IEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3ab Gigabit Ethernet
IEEE 802.3x Full-Duplex Flow Control
IEEE 802.3az Energy Efficient Ethernet
IEEE 802.1p Class of Service
Regulatory Compliance FCC Part 15 Class A, CE, UL
Stability Testing IEC 60068-2-32 (free fall)
IEC 60068-2-27 (shock)
IEC 60068-2-6 (vibration)
Environment
Temperature Operating: -40~75 degrees C
Storage: -40~75 degrees C
Humidity Operating: 5~90%, Storage: 5~90% (non-condensing)
