IP30 Industrial (-40 to 75 C)



Physical Port•5-port 10/100/1000BASE-T Gigabit RJ45 interface
- 1-port data + power input- 4-port data + power output

Power over Ethernet•1-port data + power input
- Complies with ultra Power over Ethernet end-span and mid-span PD- Complies with IEEE 802.3at High Power over Ethernet end-span / mid-span PD- Supports PoE input power up to 60 watts•4-port data + power output

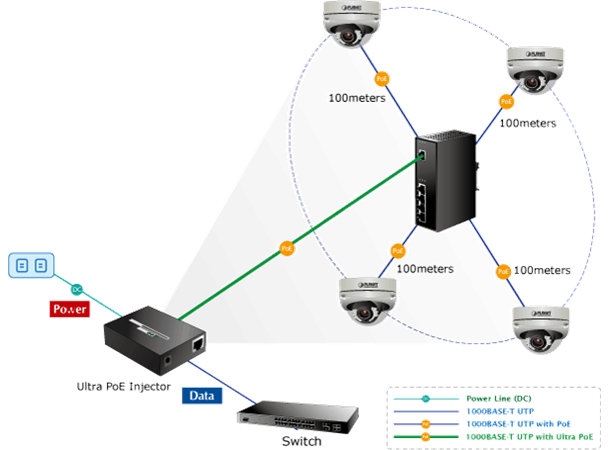

- Complies with IEEE 802.3af / IEEE 802.3at Power over Ethernet / end-span PSE- Up to 4 IEEE 802.3af / 802.3at devices powered- Supports PoE power up to 30.8 watts for each PoE port- Auto detects powered device (PD)•Extends the range of PoE to an additional 100 meters (328ft.)
•Forwards both Ethernet data and PoE power to remote device



Layer 2 Features•Hardware based 10/100Mbps, half / full duplex and 1000Mbps full duplex mode, flow control, auto-negotiation and auto MDI/MDI-X
•Features Store-and-Forward mode with wire-speed filtering and forwarding rates
•IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation
•Integrates address look-up engine, supporting 8K absolute MAC addresses
•9K jumbo frame support in 1000Mbps duplex mode
•Automatic address learning and address aging
•Supports CSMA/CD protocol



Industrial Case / Installation•IP30 metal case
•DIN rail and wall-mount design
•Supports EFT protection for 6000V DC power, and 6000V DC Ethernet ESD protection
•-40 to 75 degrees C operating temperature
•No external power cable required for installation
•Plug and Play installation
•LED indicators for each port in use and PoE power usage (25%, 50% and 75% )



Standards Compliance•IEEE 802.3 10BASE-T
•IEEE 802.3u 100BASE-TX
•IEEE 802.3ab 1000BASE-T
•IEEE 802.3x Flow Control
•IEEE 802.3at High Power over Ethernet
•IEEE 802.3af Power over Ethernet
•FCC Part 15 Class A, CE
