Product type
PA loudspeaker
Type
Powered
Low/mid Woofer dimensions
12 "
Woofer dimensions (mm)
304.8 mm
Woofer magnet
Ferrite
Woofer brand
Custom-made
Horn
BEM optimized CD Horn
HF driver dimensions
1 "
HF driver dimention (mm)
25.4 mm
HF driver magnet
Ferrite
HF driver brand
Custom-made
HF driver voice coil
1.4 "
HF driver voice coil (mm)
35 mm
Amplifier
Class D
Dispersion (H x V)
90° x 50°
System Power (RMS)
300 W
Peak power
1200 W
Frequency response
50 Hz - 20000 Hz
Crossover frequency kHz
2 kHz
Max. SPL (Peak)
126 dB
Protection circuits
Multiband limiter, over voltage, thermal overload, over-current
Controls
On / off switch, 2 x gain, Rotary/push encoder
Indicators
LC display
Mic/ line inputs
2
Mic-/ Line Input Connectors
XLR, 6.3 mm jack Combination sockets (symmetrical)
Line inputs
1
Line input connectors
3.5 mm TRS
Line outputs
1
Line output connectors
XLR
Power supply
SMPS
Power consumption
150 W
Ambient temperature (in operation)
0 - 40 °C
Operating voltage
100 V - 240 V AC / 50 - 60 Hz
Relative Humidity
< 80 %, not condensing
Fuse
T4AL 250 V
Cabinet material
Polypropylene
Cabinet construction
Bass Reflex

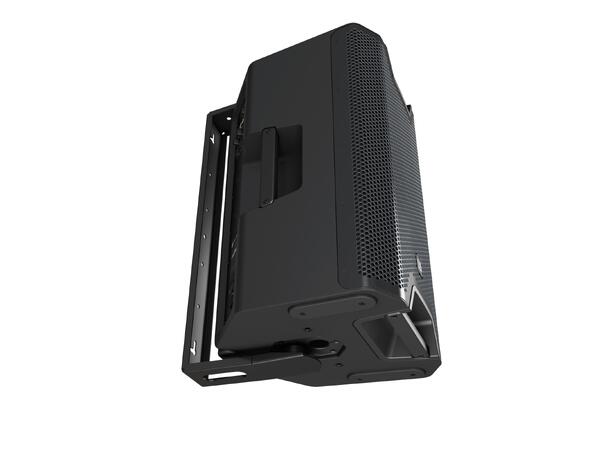

Mounting
36mm flange (0°, 5°), 6 x M10 flying points
Monitor angle
55 °
Width
375 mm
Height
635 mm
Depth
396 mm
Weight
19,95 kg
Accessories (included)
Power cord
